Products » Cutting Tools - Solid (Non-Indexable) » Taps & Accessories » ACME Taps
Narrow your search by using the "filters" below.
Tap Size:
3/8"
7/16"
1/2"
5/8"
3/4"
7/8"
1"
1-1/8"
1-1/4"
1-3/8"
1-1/2"
Decimal Equivalent:
.3750"
.4375"
.5000"
.6250"
.7500"
.8750"
1.0000"
1.1250"
1.2500"
1.2500"
1.3750"
1.5000"
TPI (Threads per Inch):
4
5
6
8
10
12
Thread Length:
2-1/8"
2-9/16"
3-3/16"
4-3/8"
4-5/16"
5-1/4"
5-1/4"
5-7/8"
Overall Length:
4-1/16"
5"
6-1/4"
7-15/16"
8-5/8"
10-1/8"
10-3/4"
11-1/8"
12-1/4"
12-5/8"
Direction of Cut:
Left Hand
Right Hand

ACME Taps

ACME Taps

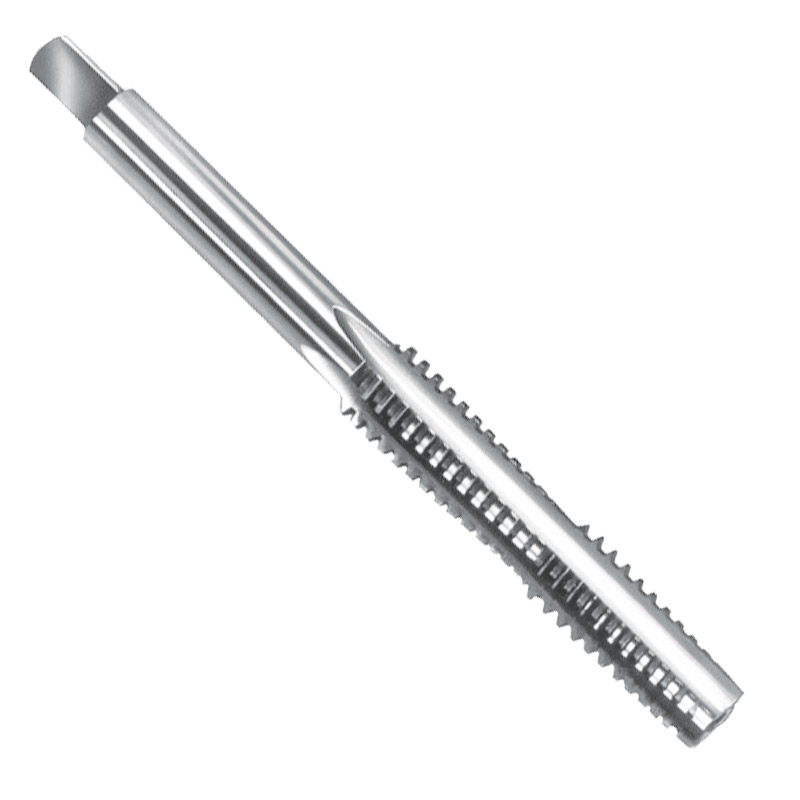

Tandem style tap eliminates the excessive cost of producing Acme threads. It produces threads from a 10° to 30° included angle in a single pass without alead-screw. The last few threads on the roughing section function as a guide for the short finishing section, which corrects the angles and brings the threads to size.
 More Info   Tap Size:   Decimal Equivalent:   TPI (Threads per Inch):   Geometry/Tool Specs:   Thread Length:   Overall Length:   Direction of Cut:   Material:   Brand:   Price   Buy Now

5546405
 		 1" 1.0000" 5 Tandem Style 5-1/4" 10-1/8" Right Hand High Speed Steel MEDA - Superior Import  $145.95

479548
 		 1-1/2" 1.5000" 4 Tandem Style 5-7/8" 12-5/8" Left Hand High Speed Steel MEDA - Superior Import  $344.15

5549604
 		 1-1/2" 1.5000" 4 Tandem Style 5-7/8" 12-5/8" Right Hand High Speed Steel MEDA - Superior Import  $220.75

479540
 		 1-1/4" 1.2500" 5 Tandem Style 5-1/4" 11-1/8" Left Hand High Speed Steel MEDA - Superior Import  $278.15

5548005
 		 1-1/4" 1.2500" 5 Tandem Style 5-1/4" 11-1/8" Right Hand High Speed Steel MEDA - Superior Import  $180.25

5547205
 		 1-1/8" 1.1250" 5 Tandem Style 5-1/4" 10-3/4" Right Hand High Speed Steel MEDA - Superior Import  $168.45

479544
 		 1-3/8" 1.3750" 4 Tandem Style 5-7/8" 12-1/4" Left Hand High Speed Steel MEDA - Superior Import  $309.25

5548804
 		 1-3/8" 1.3750" 4 Tandem Style 5-7/8" 12-1/4" Right Hand High Speed Steel MEDA - Superior Import  $212.10

479516
 		 1/2" .5000" 10 Tandem Style 2-9/16" 5" Left Hand High Speed Steel MEDA - Superior Import  $102.00

5543210
 		 1/2" .5000" 10 Tandem Style 2-9/16" 5" Right Hand High Speed Steel MEDA - Superior Import  $63.25

479524
 		 3/4" .7500" 6 Tandem Style 4-5/16" 7-15/16" Left Hand High Speed Steel MEDA - Superior Import  $147.30

5544806
 		 3/4" .7500" 6 Tandem Style 4-5/16" 7-15/16" Right Hand High Speed Steel MEDA - Superior Import  $111.10

479508
 		 3/8" .3750" 12 Tandem Style 2-1/8" 4-1/16" Left Hand High Speed Steel MEDA - Superior Import  $111.25

479520
 		 5/8" .6250" 8 Tandem Style 3-3/16" 6-1/4" Left Hand High Speed Steel MEDA - Superior Import  $108.75

5544008
 		 5/8" .6250" 8 Tandem Style 3-3/16" 6-1/4" Right Hand High Speed Steel MEDA - Superior Import  $84.00

479412
 		 7/16" .4375" 12 Tandem Style 2-9/16" 5" Right Hand High Speed Steel MEDA - Superior Import  $76.05

479512
 		 7/16" .4375" 12 Tandem Style 2-9/16" 5" Left Hand High Speed Steel MEDA - Superior Import  $111.25

5545606
 		 7/8" .8750" 6 Tandem Style 4-3/8" 8-5/8" Right Hand High Speed Steel MEDA - Superior Import  $126.65
Displaying 1 to 18 (of 18 products) Result Pages:  1
